Powder Food Mixing Machine V type blender mixer for Lab Use
Noted: product name: Cone Mixer Machine V type blender mixer for Lab Use
The page price is only for reference only, please contact the sales at the bottom of the page, they will quote for you according to the actual situation of your needs.thank you
| model | V-0.18 | V-0.3 | V-0.5 | V-1.0 | V-1.5 | V-2.0 | V-2.5 | V-3.0 | V-4.0 | V-5.0 | V-6.0 |
| Production capacity (kg/time) | 72 | 90 | 150 | 300 | 450 | 600 | 800 | 900 | 1200 | 1500 | 1800 |
| Equipped with vacuum pump model | W2 | W2 | W2 | W3 | W3 | W3 | W3 | W4 | W4 | W4 | W4 |
| Feed time (min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
| Mixing time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
| Full volume (m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Stirring speed (r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
| Motor power (kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
| Rotation height (mm) | 1580 | 2160 | 2360 | 2600 | 2800 | 2900 | 3000 | 3200 | 4000 | 4500 | 5000 |
| Weight (kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |

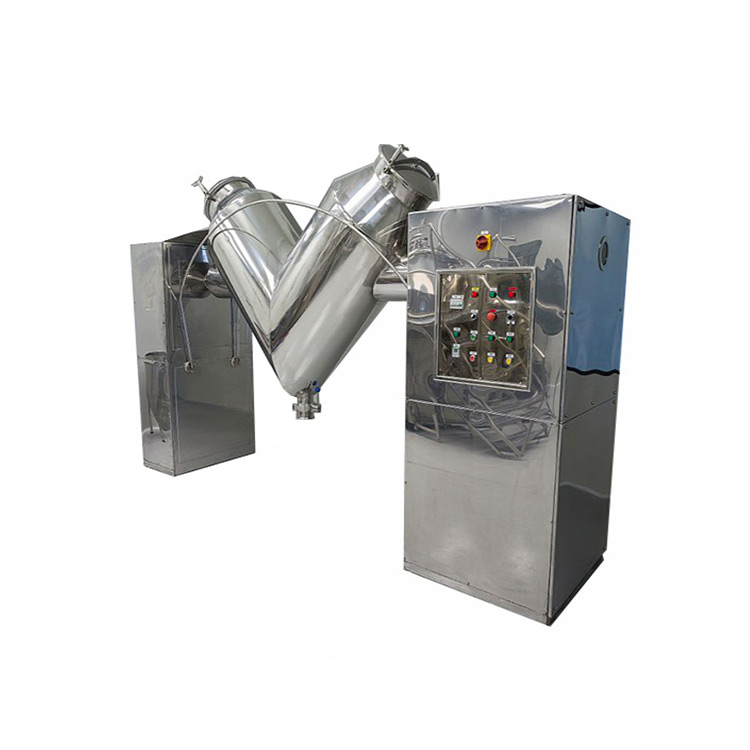

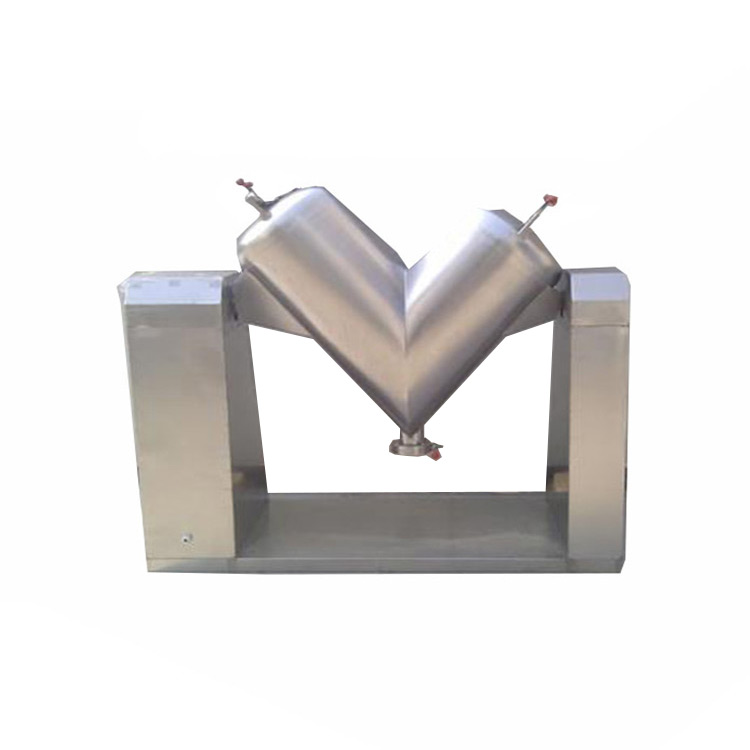

Cone Mixer Machine V type blender mixer for Lab Use
Eversun the V-type mixer is widely used for mixture of powder and granule in kinds of industries,such as agriculture,chemical,feed,coating, cosmetics and so on. The V-type mixer has features of evenly mixing, high efficiency and avoid the materials axxumulation. The fully enclosed structure also guarantee no leakage of materials during mixing process. The V-type mixer is one kind of basic mixing equipment in many industries.

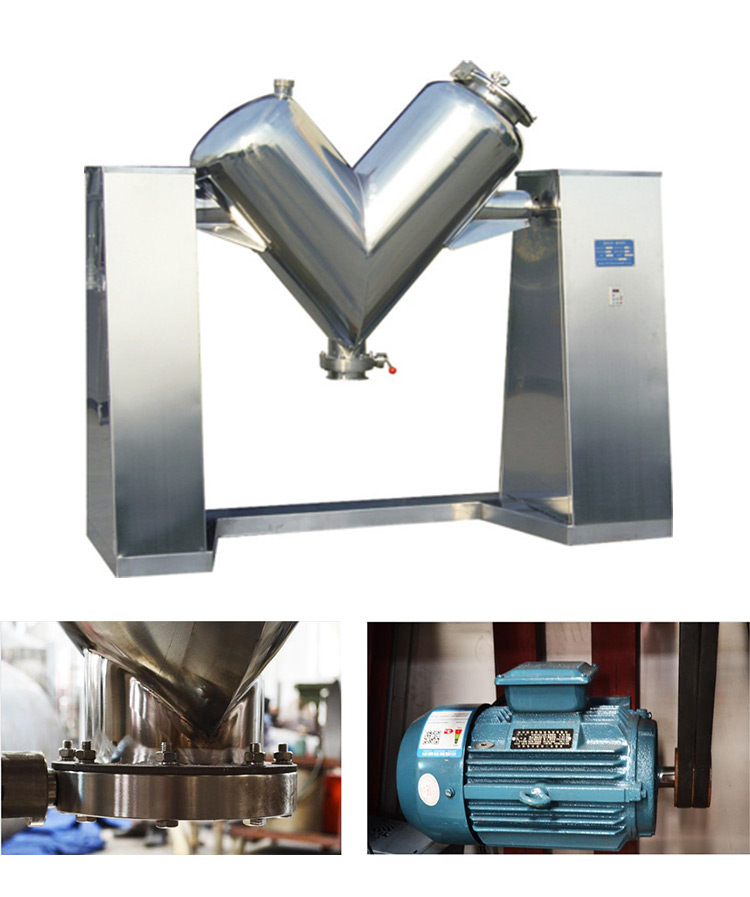

The V type mixer are equipped with one motor and one reducer. The motor will be connect with the reducer with one belt. When the motor is power on, it will drive the running of reducer. Then coupled with the reducer, V-shaped barrel will start running to mix the inside materials up, down, left and right.
Features & Benefits
- Evently mixing, high efficiency and can avoid the materials accumulation
- Compact structure, operation simple and maintenance convenience.
- Using stainless steel material, prevent the mixing materials from being polluted.
- No dead angle, no accumulation of materials, high speed, short mixing time and high uniform mixing.
- Running steady and lower noise;
- Equipped with a timing device, it can set mixing time to realize automatic stop.
- Cone Mixer MachineV type blender mixerV type Pharmaceutic mixer
Machine description:

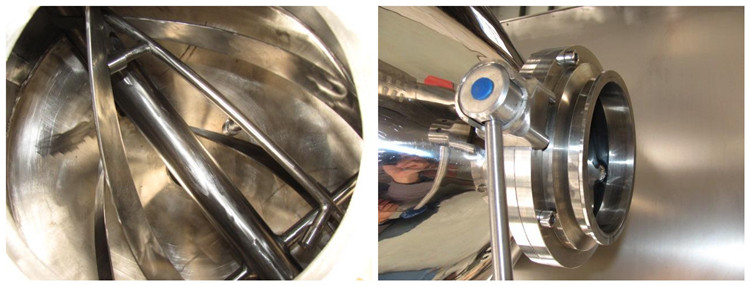

The machine consists of two asymmetric cylinders. The materials can flow as vertical and horizontal direction. The mixing uniformity will be above 99%.
The machine is used to mix the dry-powder, granular materials with good liquidity.

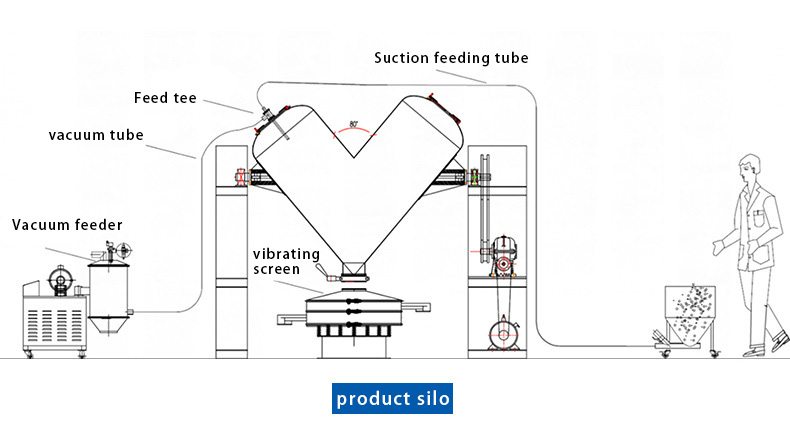

The machine adopts vacuum feeding under sealing state. There no driving structure inside and be clean, no dead corner in according to with GMP standard
All made of SS304. All preparation process happened in Vacuum Status, no chance touch with material. Below four pages are Specification Parameter for each item.

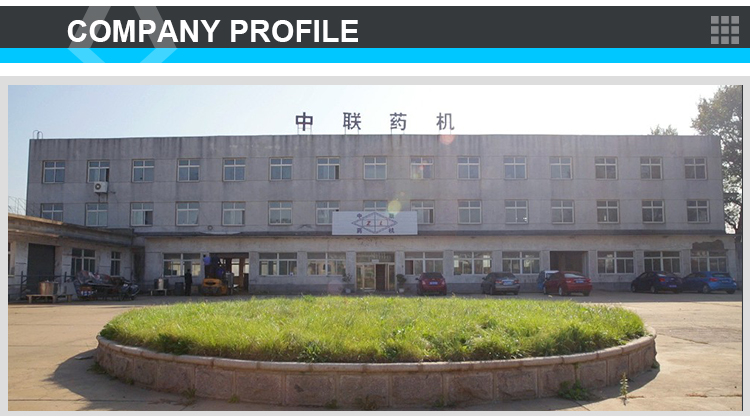

Liaoyang Zhonglian Machinery Co.,Ltd. ,(subsidiary corporation Liaoyang zonelink trading Co.,Ltd ) belongs to ZHONGLINAN international Group. We are the professional manufacturer of chemical equipment and food equipment, which including separating equipment, filling equipment, packing equipment, dryer and relevant complete set of production line equipment.
Group was founded in 2001, the headquarters is located in Liaoyang city, Liaoning province. The factory covers an area of ten thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales service team. Our aim is saving your valuable time and cost, providing you with the workable solution!
Q:How to choose the suitable machine?
A:The proper selection of the vibrating screen depends on the material, number of layers, every mesh size, capacity, material moisture, viscous and corrosive etc:
-
Name and feature of the raw material?
-
Aim of using: get rid of impurity, filtration, grading
-
Handling capacity: kg /h, L/h
-
The raw material size: (mesh or mm)
-
How many final materials you want, or how many layer you need?
-
Local power supply (voltage and frequency)
-
Note: You had better send us the relevant pictures about the details.
Q:How many kinds of material are supported?
A:All stainless steel (304, 316L)
All carbon steel Q235A
Contact part Stainless steel.
Q:Is it special requirement available?
A:Yes, the equipment could be designed according to customer's using aim or special requirements.
Q: We found out the voltage supply is only 220V and our voltage requirement is 440VAC, could you please offer us those?
A:Yes, we can offer machines with any voltages and frequencies existing on the earth.
Q: How about the warranty of equipments purchased?
A: The warranty period is for one year for whole machine except the consumable and wearing parts. We are always glad to provide technical supports and solutions for the whole using life.
Q: How long will my order take?
A: Normal delivery is about 7 working days. Ending delivery schedule depends on the quantity and items you ordered.
Q: How about the packing of machine, can I use my own logo on packages?
A:Normally we are using fumigation-free plywood case to pack machines. We can mark your own logo on the packages. And also can be neutral packing for your convenience.
Q:How to install and configure a rotary vibrating screen?
A:Very easy, we have served thousands of customers home and abroad,when delivering the machine we just attach a video manual,you may follow us on youtube Vibrating Screen Exper.
